Yanruilin SCX-140 pipe end forming machine | A Stable Forming Tool for Medium Diameter Pipe Fittings Jiangsu

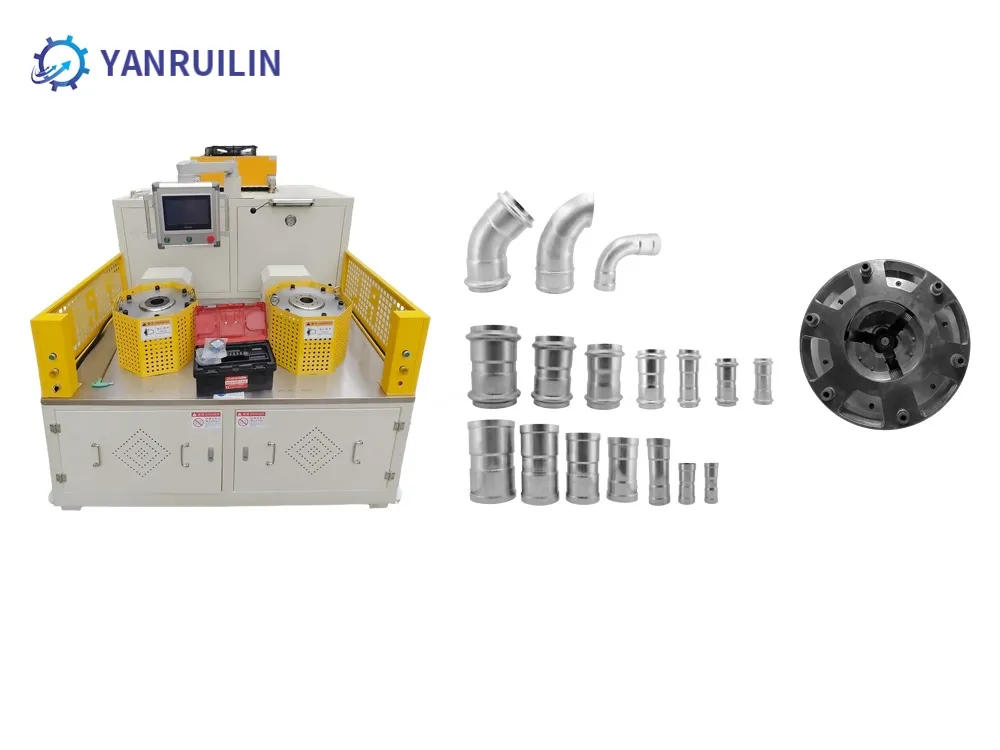

Yanruilin SCX-140 is a vertical dual station forming equipment designed for medium pipe diameters of 35-140mm. It is compatible with 0.2-3.5mm wall thickness pipe fittings and supports processes such as single/double clamping, ring pressing, and contour expansion and contraction. It can efficiently process parts in 12-35 seconds per piece and has Swiss process grade scratch free forming. The hourly production capacity of a single machine can reach more than 300 pieces.

The equipment adopts servo drive and precision mold group, with a forming accuracy of ≤± 0.02mm; dual station parallel processing is suitable for mass production, with reserved mechanical arm interfaces for connecting to automated production lines, and a reasonable volume of 1.9 × 2.0 × 1.8m takes into account the flexibility of workshop layout.

From municipal pipeline joints, building fittings to industrial pipeline ends, SCX-140 is a highly stable choice for medium diameter processing scenarios.

Technical Specifications of the 140 Pipe End Forming Machine
The 140 pipe end forming machine is defined by its robust technical parameters, which determine its processing capabilities, performance limits, and compatibility with different applications.

production length:20-2000mm

production diameter range:25 -140mm

production wall thickness range:0.2-3.5mm

production efficiency:12-35/s

equipment weight:3.8ton

length*width*height:2*2.4*2

Details description

Jiangsu Yanruilin Precision Machinery Co., Ltd. is a research and manufacturing enterprise specializing in metal straight pipe forming and processing equipment.

Main business: professional equipment for Vertical pipe end forming machines, horizontal forming machines, and dual station Pipe end forming machines.

The company has independently developed over a thousand casing section forming molds, including cutting, CNC machining, precision machining of machining centers, wire cutting, and dozens of sets of equipment. We specialize in mold research and development to meet user production needs, with a market share of 85%. All cooperative users meet various customized requirements. The products are exported to the domestic market. Up to now, thousands of casing section forming equipment have been delivered to the Chinese market. The product is widely used in industries such as aviation, shipbuilding, automotive construction water supply and drainage, municipal pipelines, household appliances, and pipeline smoke exhaust. The company, with its unique technology and advanced research and development concept, produces and sells six generations of models, develops and designs seven sets of models, which have far exceeded the current usage scenarios of market users. Company business philosophy: Never be satisfied with current technology, always maintain advanced research and development, make our users' products competitive in the market, warn employees not to meet current technological levels, and always maintain innovative thinking. We warmly welcome customers to visit our factory for inspection, exchange and cooperation.
